LA-210
Overview
Features
System type:3 unit 2 X-over inverse-phase type
●Rated power:700 W
●Maximum power:1400W
●Peak power:2800 W
●Impedance:4 OHMS
●Sensitivity(1W@1m):107 dB
●Max SPL(Pmax@1m): 135dB@700w (138dB@1400w)
●Frequency bandwidth:65Hz—18KHz
●Directivity(-6dB):single array module is 100º level 5 º vertical
(note:linear array vertical coverage Angle will changed according to the different degree and curvature of array)
●Adjustable Angle:0°~ 8 °,Unit adjustment Angle 1 °
●Number of proposed groups:≥4
●Rated parallel number:≤1
●Transduction device configuration:low-frequency driver 10'’
(250mm unit 65 mm voice coil)×2
high-frequency driver 3〞(75mm voice coil)×1
●High frequency waveguide horn: 1.5〞(38 mm throat)×1
●X-over Mode:inactive mode
●Connector: SPEAKON NL4×2 PIN1+/2+POS. PIN1-/2-NEG.
●Material:18mm( 0.7〞)Birch plywood
●Hanging hardware:Professional adjustable Angle hanger

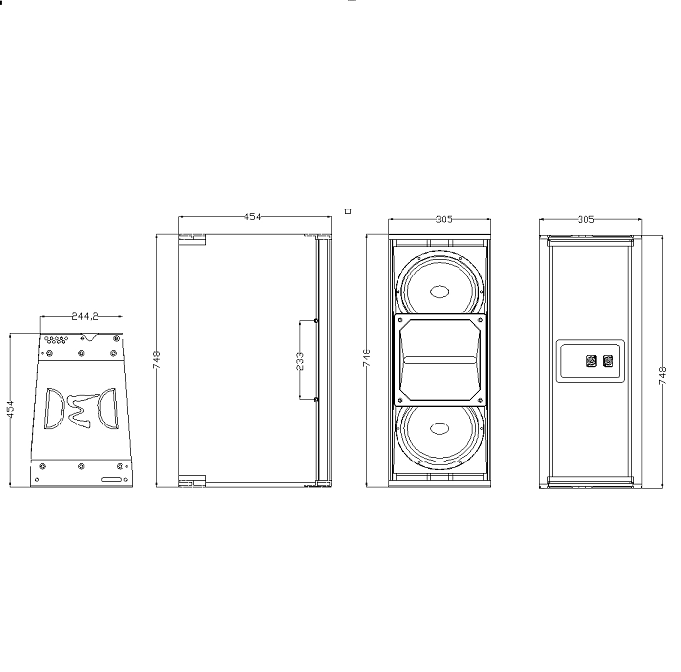

●Dimension:W748 mm*D 454mm*H305mm
●Weight :30 kg
